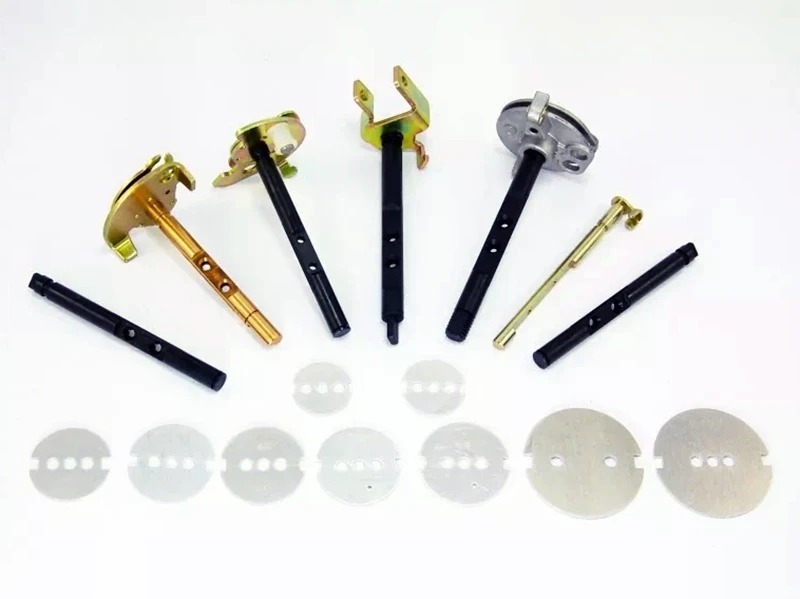

Custom Shaft Machining
Custom Shaft Machining
As a precision shaft manufacturer, we produce custom shafts for automotive, industrial machinery, automation equipment, and power transmission systems.
Details
Custom Shaft Machining Service
Machining diameter: Ø0.8 mm ~ Ø51 mm
Machining tolerance: ±0.003 mm for copper and aluminum materials; ±0.005 mm for other materials.
Actual tolerances are determined based on customer requirements.
Why Precision Machining Matters for Shaft Components
Shafts are constantly subjected to rotational loads and must maintain accurate alignment with bearings, gears, couplings, and other mating components. Precision machining helps improve operating stability and extends component service life.
Precision machining helps improve:
- Accurate concentricity
- Better rotational balance
- Reduced vibration
- Improved bearing alignment
- Longer component life
Practical examples
- For engine and transmission systems, accurate shaft diameters and concentricity help reduce vibration while maintaining smooth torque transmission between rotating components.
- For automation equipment, precise shaft dimensions ensure accurate positioning and consistent movement throughout repeated operating cycles.
Material Selection for CNC Machined Shafts
Different shaft applications require different combinations of strength, weight, corrosion resistance, and machining characteristics.
Other machinable materials, apart from those listed below, are detailed on this page.
Titanium (CP1–CP4, Ti-6Al-4V) for High-Strength Lightweight Shafts
For high-speed rotating equipment, titanium shafts help reduce rotating mass while maintaining structural rigidity and long-term reliability.
Typical applications include: High-performance drive shafts, Aerospace rotating shafts, Precision transmission shafts, Lightweight mechanical components.
Why it is selected:
- High strength-to-weight ratio
- Excellent fatigue resistance
- Outstanding corrosion resistance
- Stable performance under demanding conditions
Aluminum (A2011, A2021, A6061, A7075, A5056) for Lightweight Mechanical Systems
Aluminum alloys are selected for shafts where reducing weight improves system performance without sacrificing machining precision.
Typical applications include: Motor shafts, Automation equipment shafts, Lightweight transmission components.
Why it is selected:
- Lightweight properties
- Excellent machinability
- Good corrosion resistance
- Suitable for complex shaft geometries
Other machining materials can be found on this page for reference.
Surface Treatments for Custom Shaft Components
Shaft components require stable rotation, accurate dimensional control, and long-term durability under mechanical loads. Appropriate surface treatment helps improve wear resistance, protect machined surfaces, and maintain consistent performance in transmission and motion systems.
Other machinable materials, apart from those listed below, can be found on this page.
Chrome Plating for Improved Shaft Wear Resistance
Chrome plating is commonly applied to shaft surfaces requiring improved hardness and resistance against repeated contact and friction.
TiN Coating for High-Performance Shaft Applications
TiN coating provides a hard protective layer for shaft components requiring enhanced surface performance and reduced friction.
Other surface treatment options can be found on this page for reference.
Partner with HUANG LIANG PRECISION for Custom Shaft Machining
HUANG LIANG PRECISION provides precision CNC machining for custom shaft components used in automotive, industrial, and automation applications. As a precision shaft manufacturer, we support customers with custom shaft machining, material selection, and secondary processing.
Contact HUANG LIANG PRECISION to discuss your shaft machining requirements.
