As a custom gear manufacturer, we support customers requiring ODM /OEM gear production with reliable dimensional control and repeatable manufacturing processes.
Details
ODM / OEM Gear Manufacturing Service
- Machining diameter: Ø0.8 mm ~ Ø51 mm
- Machining tolerance: ±0.003 mm for copper and aluminum materials; ±0.005 mm for other materials.

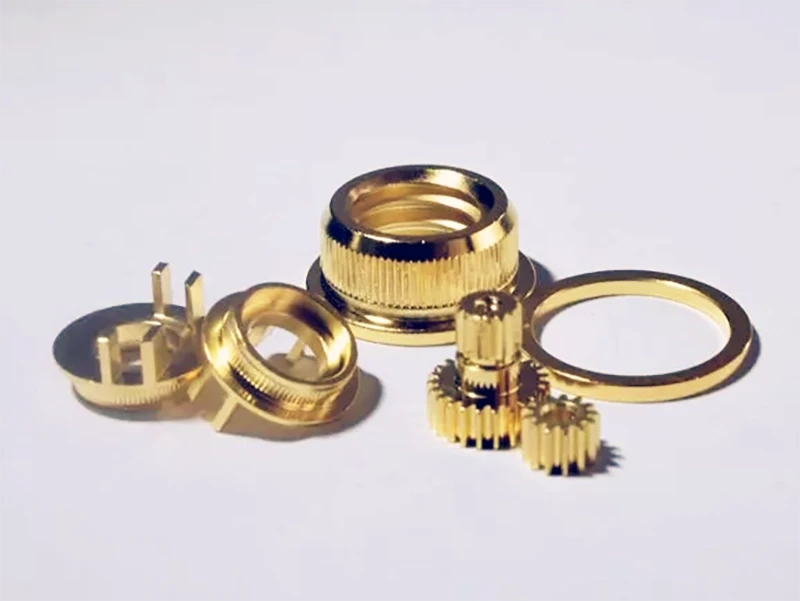

- Actual tolerances: Actual tolerances vary depending on the material, part design, and customer requirements. For example, the typical tolerance for the gear shown in the image is ±0.03 mm.
Why Precision Machining Matters for Custom Gears
The performance of a gear system depends on how accurately each gear engages with its mating component. Small deviations in tooth geometry or spacing may increase operating noise, reduce transmission efficiency, and accelerate wear.
Precision machining helps improve:
- More consistent gear meshing
- Stable torque transmission
- Reduced operating noise
- Lower tooth wear
- Improved service life
Practical Examples
- For automotive transmission systems, accurate gear tooth geometry helps maintain stable power transfer while reducing vibration during speed changes.
- For robotic equipment, precision gears enable smooth and repeatable motion, improving positioning accuracy throughout continuous operating cycles.
Material Selection for Custom Gears
The choice of material affects gear strength, wear characteristics, machining performance, and operating efficiency.
Other machinable materials, apart from those listed below, are detailed on this page.
Aluminum (A6061) for Lightweight Drive Systems
In automated equipment, aluminum gears help reduce inertia, allowing smoother acceleration and more responsive motion.
Typical applications include: Robotic drive systems, Automation equipment, Compact transmission mechanisms.
Why it is selected:
- Lightweight construction
- Good machinability
- Excellent corrosion resistance
Free-Cutting Steel (SUM24L / 12L14) for Durable Transmission Components
Typical applications include: Spur gears, Pinion gears, Drive gears, Industrial transmission components.
Why it is selected:
- Good structural strength
- High machining efficiency
- Consistent dimensional stability
- Suitable for secondary finishing
Other machining materials can be found on this page for reference.
Surface Treatments for Custom Gear Components
Gear components require accurate tooth profiles and stable contact performance during continuous power transmission. Proper surface treatment helps improve wear resistance, reduce friction between gear teeth, and maintain smooth mechanical operation.
Other machinable materials, apart from those listed below, can be found on this page.
Nitriding Treatment for Improved Gear Surface Strength
Nitriding treatment is commonly applied to steel gears requiring enhanced surface hardness and resistance against repeated contact stress.
Teflon Treatment for Reduced Friction Gear Operation
Teflon treatment is suitable for gear components where smoother movement and lower friction are required.
Other surface treatment options can be found on this page for reference.
Partner with HUANG LIANG PRECISION for Custom Gears
HUANG LIANG PRECISION provides precision CNC machining for custom gears used in automotive, automation, and industrial equipment. As a custom gear manufacturer, we support customers with ODM / OEM gear production, material selection, and precision machining based on application requirements.
Contact HUANG LIANG PRECISION to discuss your custom gear project.
