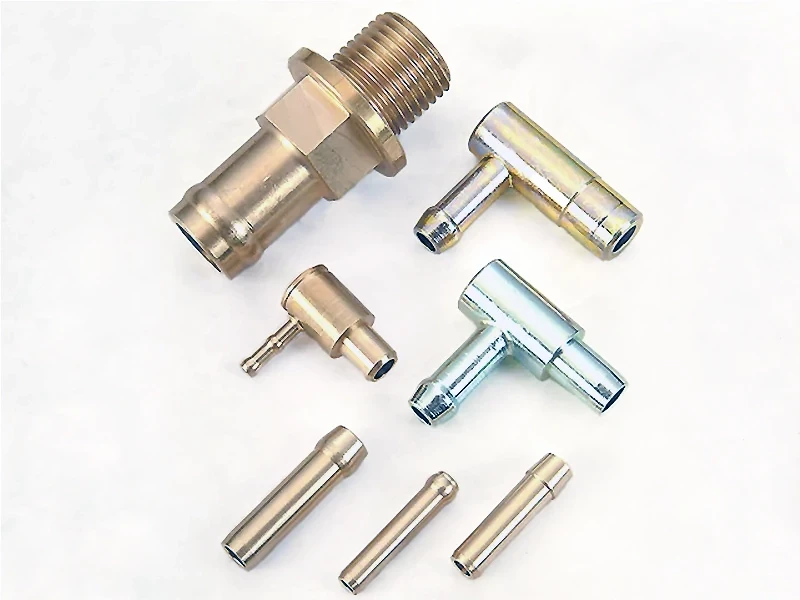

Custom Nozzle Components Machining
Custom Nozzle Components Machining
As a precision turned components manufacturer, we support industries that require complex small-diameter parts with consistent machining accuracy.
Details
ODM / OEM Nozzle Components Machining Service
- Machining diameter: Ø0.8 mm ~ Ø51 mm
- Machining tolerance: ±0.003 mm for copper and aluminum materials; ±0.005 mm for other materials.
- Actual tolerances are determined based on customer requirements.
Why Tight Tolerance Matters for Nozzle Components
Nozzle performance depends heavily on the accuracy of internal holes, flow channels, and sealing surfaces. Even small dimensional differences may change spray distribution, flow rate, and operating efficiency.
Precision machining helps improve:
- Stable spray pattern
- Consistent fuel or fluid flow
- Accurate injection volume
- Reduced performance variation between components
- Improved system efficiency
Practical examples
- For fuel injection nozzles, accurate hole diameter control helps maintain uniform spray distribution, allowing fuel to mix more effectively during combustion.
- For high-pressure fluid nozzles, precise internal machining helps prevent uneven flow and maintains stable operating pressure.
- For custom nozzle applications, consistent machining accuracy ensures that each component performs according to the customer's design requirements across different production batches.
Material Selection for CNC Machined Nozzle Components
The material selected for nozzle components depends on operating conditions such as temperature, pressure, fluid characteristics, wear resistance, and machining requirements.
Other machinable materials, apart from those listed below, are detailed on this page.
Steel Materials for High-Pressure and Wear-Resistant Nozzle Components
Steel materials are widely selected for nozzle components exposed to high pressure, repeated operation, and mechanical stress.
Common materials include:
- Carbon Steel (S15C ~ S45C)
- Bearing Steel (SUJ2)
- Stainless Steel (SUS303, SUS304, SUS316, SUS420, SUS440C)
- Chromium Molybdenum Steel (SCM415, SCM420, SCM435, SCM440)
- Free-Cutting Steel (SUM24L/12L14, SUM25L/1215)
Typical applications include: Fuel injection nozzles, Precision spray tips, Valve-related nozzle parts, High-wear components.
Why it is selected:
- High mechanical strength
- Excellent wear resistance
- Suitable for high-pressure environments
- Supports heat treatment for improved durability
Copper Nickel Alloy and Engineering Plastics for Specialized Applications
Some nozzle-related components require corrosion resistance, insulation, or low-friction characteristics.
Common materials include:
- Copper Nickel Alloy (Cupronickel 400)
- POM
- TEFLON/PTFE
- PEEK
Typical applications include:
- Sealing components
- Insulating parts
- Low-friction guide components
- Chemical-resistant internal parts
Other machining materials can be found on this page for reference.
Surface Treatments for Custom Nozzle Components
Nozzle components operate under continuous exposure to high-pressure fluids, elevated temperatures, and abrasive media. Proper surface treatment helps maintain spray consistency, protect precision features, and extend component service life.
Other machinable materials, apart from those listed below, can be found on this page.
TiN (Titanium Nitride) Coating for High-Wear Components
TiN coating is commonly applied to nozzle components that require excellent surface hardness and long-term resistance to abrasive wear.
Tin Plating for Copper Alloy Components
Tin plating is frequently used on copper alloy nozzle components where corrosion protection and clean surface characteristics are important.
Other surface treatment options can be found on this page for reference.
Partner with HUANG LIANG PRECISION for Custom Nozzle Components
HUANG LIANG PRECISION provides precision CNC machining for custom nozzle components. As a precision turned components manufacturer, we support customers with custom nozzle, material selection, and secondary processing.
Contact HUANG LIANG PRECISION to discuss your nozzle component requirements.
