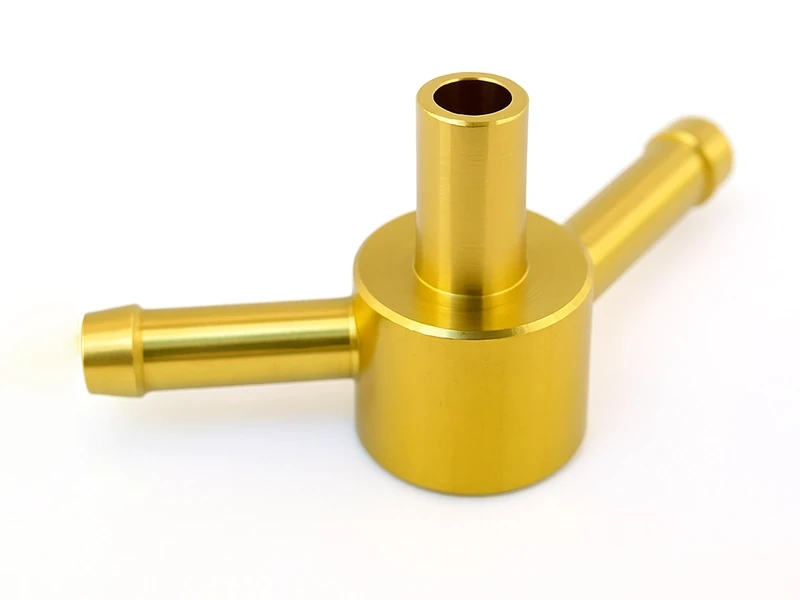

Custom Pipe Fitting Machining
Custom Pipe Fitting Machining
As a CNC machining factory, we support manufacturers with precision machined pipe fittings designed for hydraulic, pneumatic, and industrial fluid systems.
Details
ODM / OEM Pipe Fitting Machining Service
- Component diameter: Ø0.8 mm ~ Ø51 mm
- Machining tolerance:
- ±0.003 mm for copper and aluminum materials
- ±0.005 mm for other materials.
- Actual tolerances vary by material, part design, and customer requirements. For example, the typical tolerance for pipe fittings is ±0.05 mm.
Why Precision Machining Matters for Custom Pipe Fittings
Pipe fitting performance depends on accurate connection surfaces and consistent dimensions. Small variations in machining may affect assembly accuracy, sealing performance, and pressure resistance.
Precision machining helps improve:
- Accurate pipe connection
- Stable sealing performance
- Reduced leakage risk
- Improved pressure resistance
Practical examples
- For threaded pipe fittings, accurate thread machining helps ensure proper engagement between connecting parts and reduces the possibility of leakage during operation.
- For internal fluid passages, precise inner hole processing helps maintain smooth flow paths and reduces flow resistance.
Material Selection for CNC Machined Pipe Fittings
The material selected for pipe fittings depends on application requirements such as fluid type, pressure conditions, corrosion resistance, and machining performance.
Other machinable materials, apart from those listed below, are detailed on this page.
Copper (C3604) for Precision Fluid Connection Components
For fluid systems requiring reliable connections, accurately machined copper fittings help maintain proper sealing surfaces and stable fluid flow.
Typical applications include: Fluid connectors, Pipe adapters, Precision threaded fittings, Small pipe connection components.
Why it is selected:
- Excellent machining performance
- Stable dimensional accuracy
- Good corrosion resistance
- Suitable for precision internal features
Aluminum (A6061) for Lightweight Pipe Fitting Applications
A6061 aluminum is selected for applications where weight reduction and corrosion resistance are important considerations.
Typical applications include: Lightweight connectors, Equipment pipe interfaces, Pneumatic system fittings, Mounting components.
Why it is selected:
- Lightweight characteristics
- Good machinability
- Suitable for complex designs
- Supports anodizing and surface treatments
Other machining materials can be found on this page for reference.
Surface Finishing and Secondary Processing for Pipe Fittings
Pipe fittings may require additional processing to improve corrosion resistance, surface durability, and performance under different operating environments.
Other machinable materials, apart from those listed below, can be found on this page.
Nickel Plating for Brass Pipe Fittings
Nickel plating is suitable for C3604 brass pipe fittings used in fluid or pneumatic systems where the fitting is exposed to moisture or requires additional surface protection.
- Helps improve corrosion resistance on the fitting surface
- Provides a more durable surface for repeated installation
- Suitable for fittings used in pneumatic equipment, fluid control systems, and industrial machinery
- Helps maintain the appearance of exposed fitting surfaces during long-term use
Anodizing for Aluminum Pipe Fittings
Anodizing is a suitable option for A6061 aluminum pipe fittings where lightweight construction and surface protection are required.
- Improves surface resistance against oxidation and environmental exposure
- Maintains the lightweight characteristics of aluminum
- Suitable for fittings used in automotive equipment, fluid systems, and mechanical assemblies
- Provides a more durable surface for components exposed to handling and installation
Other surface treatment options can be found on this page for reference.
Partner with HUANG LIANG PRECISION for Custom Pipe Fittings
HUANG LIANG PRECISION provides precision CNC machining for custom pipe fittings. As a CNC machining factory, we support customers with ODM / OEM pipe fitting production, material selection, and secondary processing.
Contact HUANG LIANG PRECISION to discuss your pipe fitting component requirements.
