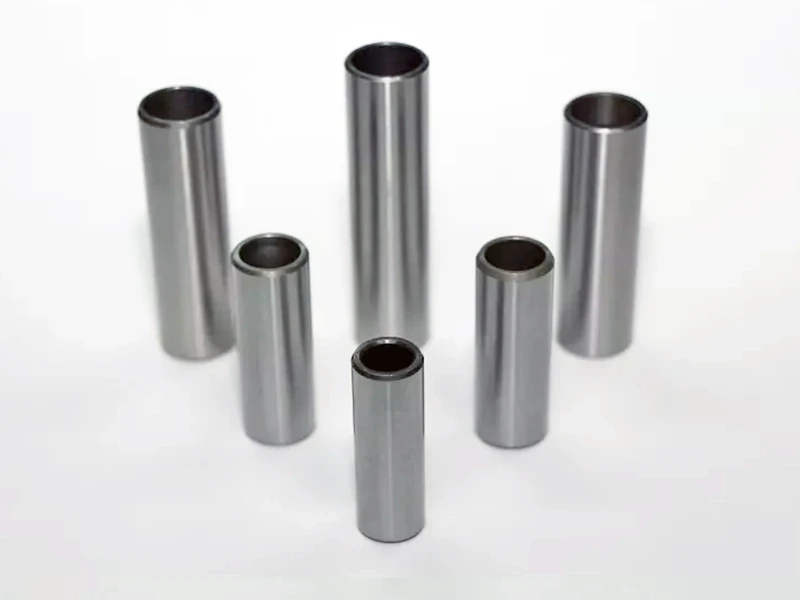

Precision Piston Pin / Gudgeon Pin Machining
Precision Piston Pin / Gudgeon Pin Machining
As a precision pin manufacturer, we support automotive, motorcycle, and industrial engine applications with CNC machined piston pins designed for long-term durability.
Details
ODM /OEM Pin Machining Service
- Machining diameter: Ø0.8 mm ~ Ø51 mm
- Machining tolerance: ±0.003 mm for copper and aluminum materials; ±0.005 mm for other materials.
- Actual tolerances are determined based on customer requirements.
Why Precision Machining Matters for Piston Pins
Piston pins experience constant sliding and rotational movement throughout every engine cycle. Accurate machining helps reduce friction, improve load distribution, and extend component service life.
Precision machining helps improve:
- Accurate concentricity
- Stable pin-to-bushing clearance
- Reduced friction during operation
- Better load distribution
- Improved engine durability
Practical Examples
- For automotive engines, precise diameter control allows piston pins to fit accurately inside the piston and connecting rod, supporting smooth reciprocating movement.
- For high-speed engine applications, consistent concentricity helps reduce vibration and uneven loading during continuous operation.
Material Selection for CNC Machined Piston Pins
Other machinable materials, apart from those listed below, are detailed on this page.
Stainless Steel (304, 316, 420, 440C) for Corrosion Resistance and Wear Performance
Stainless steel is selected for piston pins operating in environments where corrosion resistance or additional wear protection is required.
Typical applications include: Precision engine pins, Mechanical shaft pins, Corrosion-resistant linkage components, Industrial engine assemblies.
Why it is selected:
- Excellent corrosion resistance
- Good surface finish capability
- High wear resistance for selected grades
- Suitable for demanding operating conditions
For engines exposed to moisture or aggressive environments, stainless steel helps maintain long-term component reliability.
Chromium Molybdenum Steel (SCM415, SCM420, SCM435, SCM440) for Heavy-Duty Engine Applications
Chromium molybdenum steel is commonly selected for piston pins subjected to high loads and continuous mechanical stress.
Typical applications include: High-performance piston pins, Racing engine components, Heavy-duty engine assemblies, High-strength rotating parts.
Why it is selected:
- Excellent fatigue strength
- High impact resistance
- Outstanding hardenability
- Suitable for demanding engine applications
Other machining materials can be found on this page for reference.
Surface Treatments for Precision Piston Pin Components
Piston pins operate under continuous reciprocating motion and high mechanical loads inside engines. Proper surface treatment helps improve wear resistance, reduce friction, and maintain stable dimensional accuracy throughout long-term operation.
Other machinable materials, apart from those listed below, can be found on this page.
Hard Chrome Plating for Wear-Resistant Piston Pin Surfaces
Hard chrome plating is commonly applied to piston pins requiring enhanced surface hardness and resistance against repeated contact wear.
TiN Coating for High-Performance Engine Components
TiN coating provides a hard surface layer suitable for precision engine parts exposed to high-speed movement and mechanical stress.
Other surface treatment options can be found on this page for reference.
Partner with HUANG LIANG PRECISION for Precision Piston Pins
HUANG LIANG PRECISION provides precision CNC machining for precision piston pins and gudgeon pins. As a precision pin manufacturer, we support customers with ODM /OEM pin production, material selection, heat treatment, and secondary processing.
Contact HUANG LIANG PRECISION to discuss your piston pin machining requirements.
